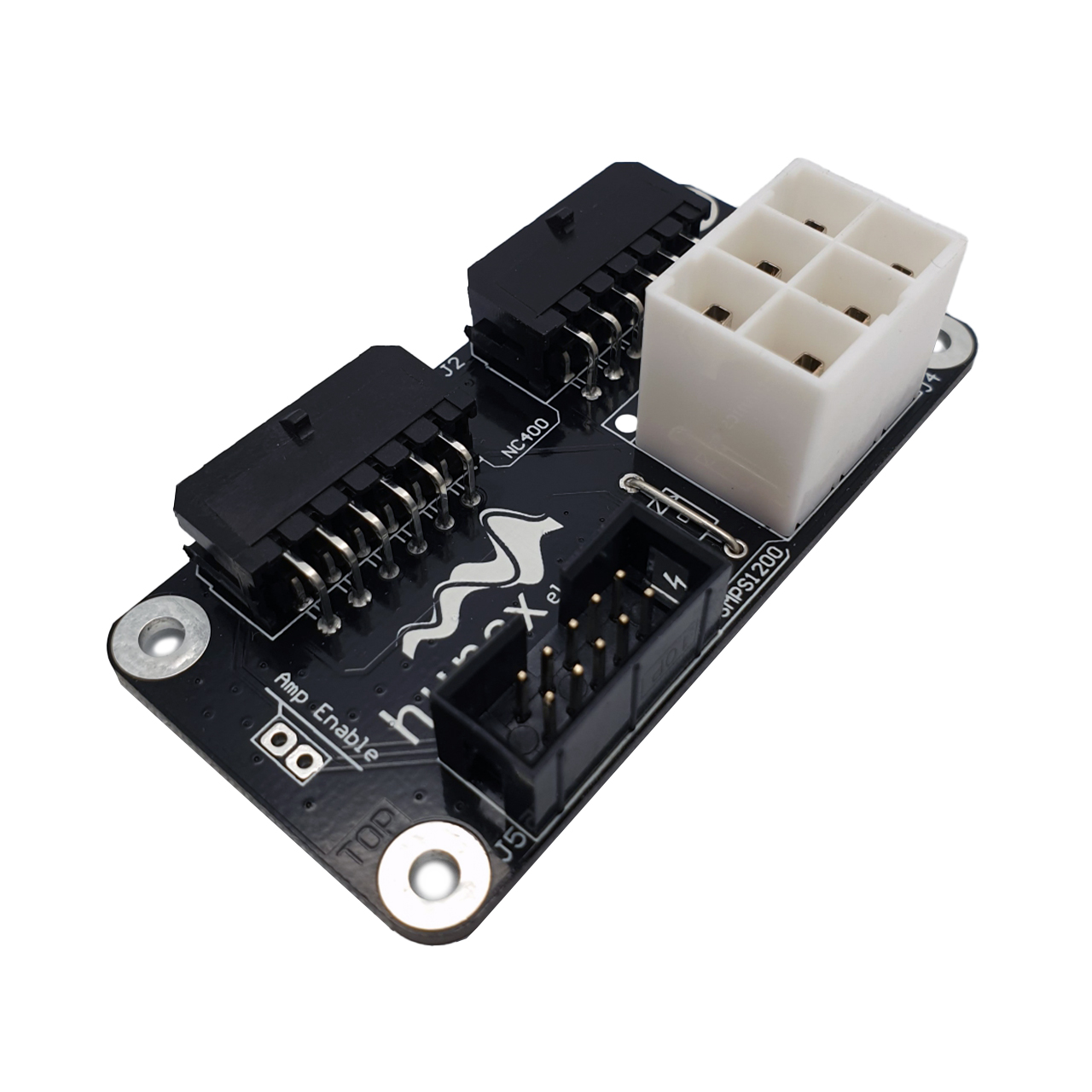

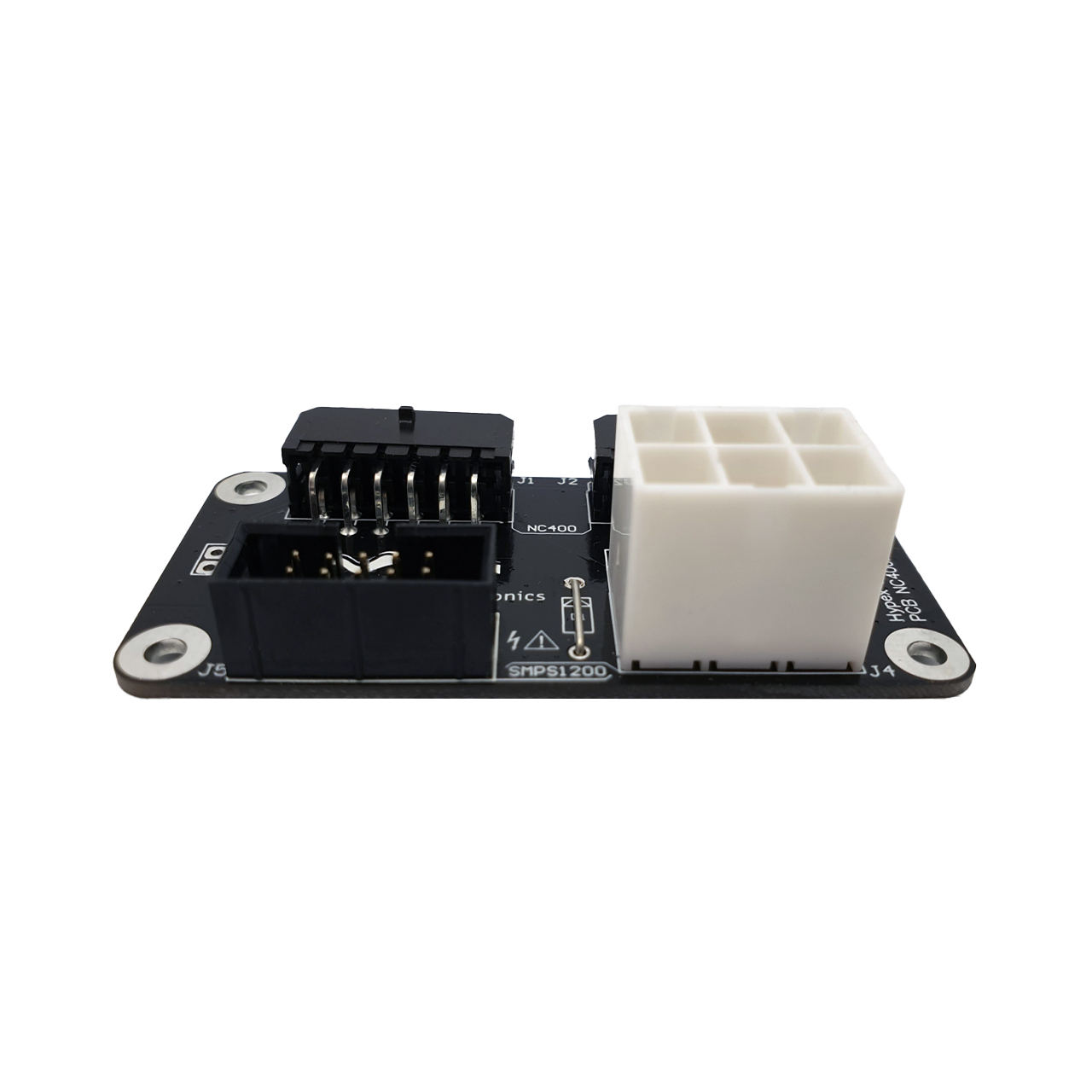

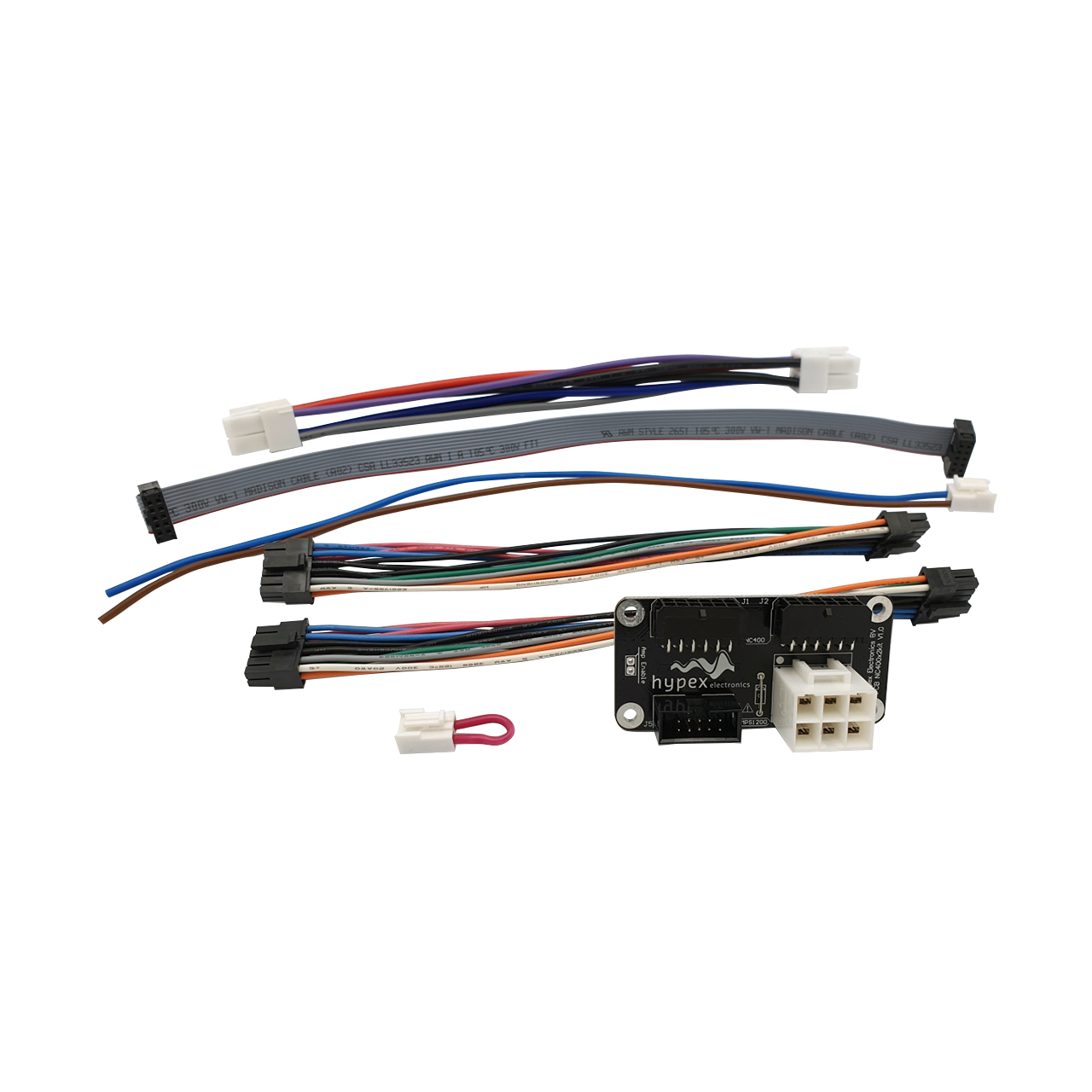

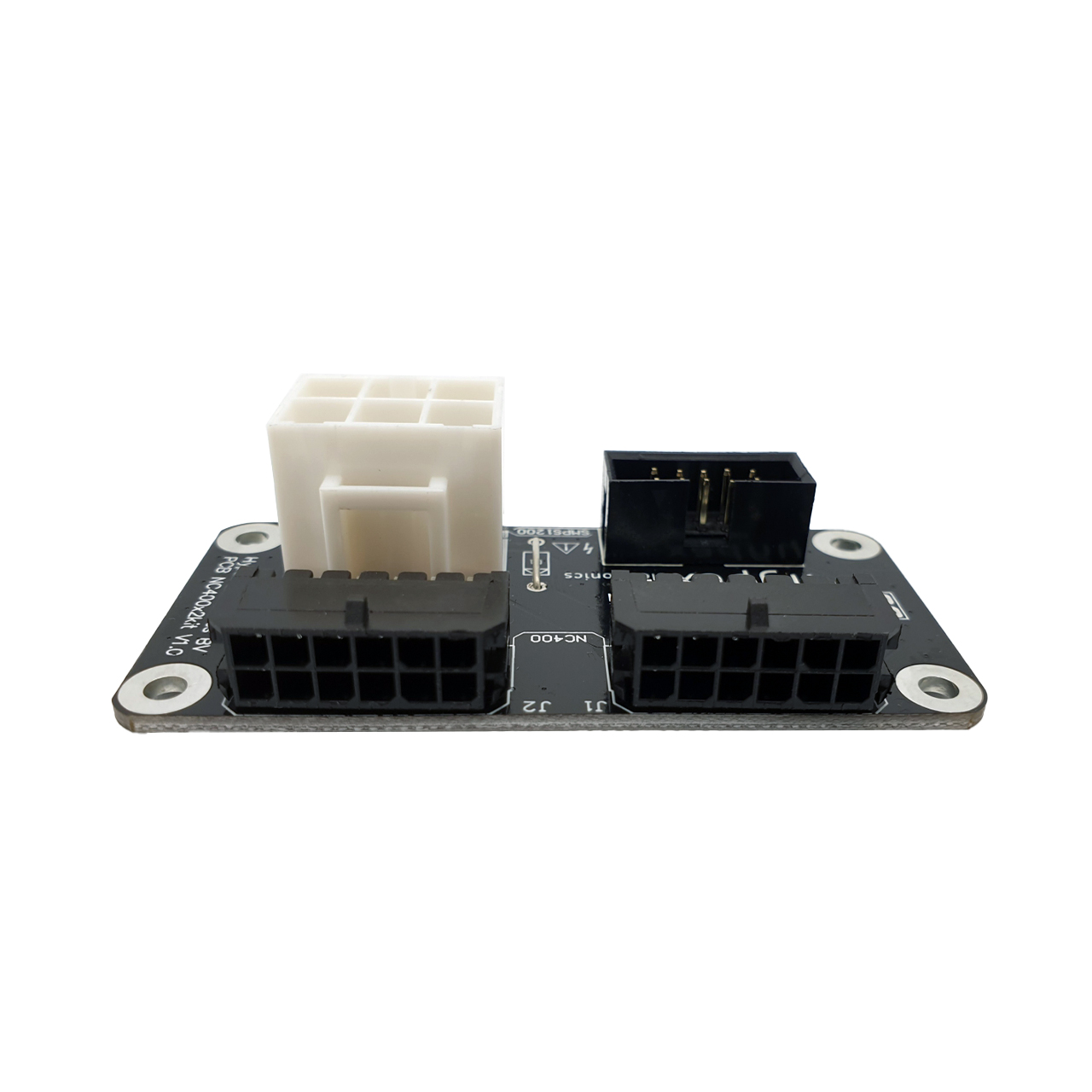

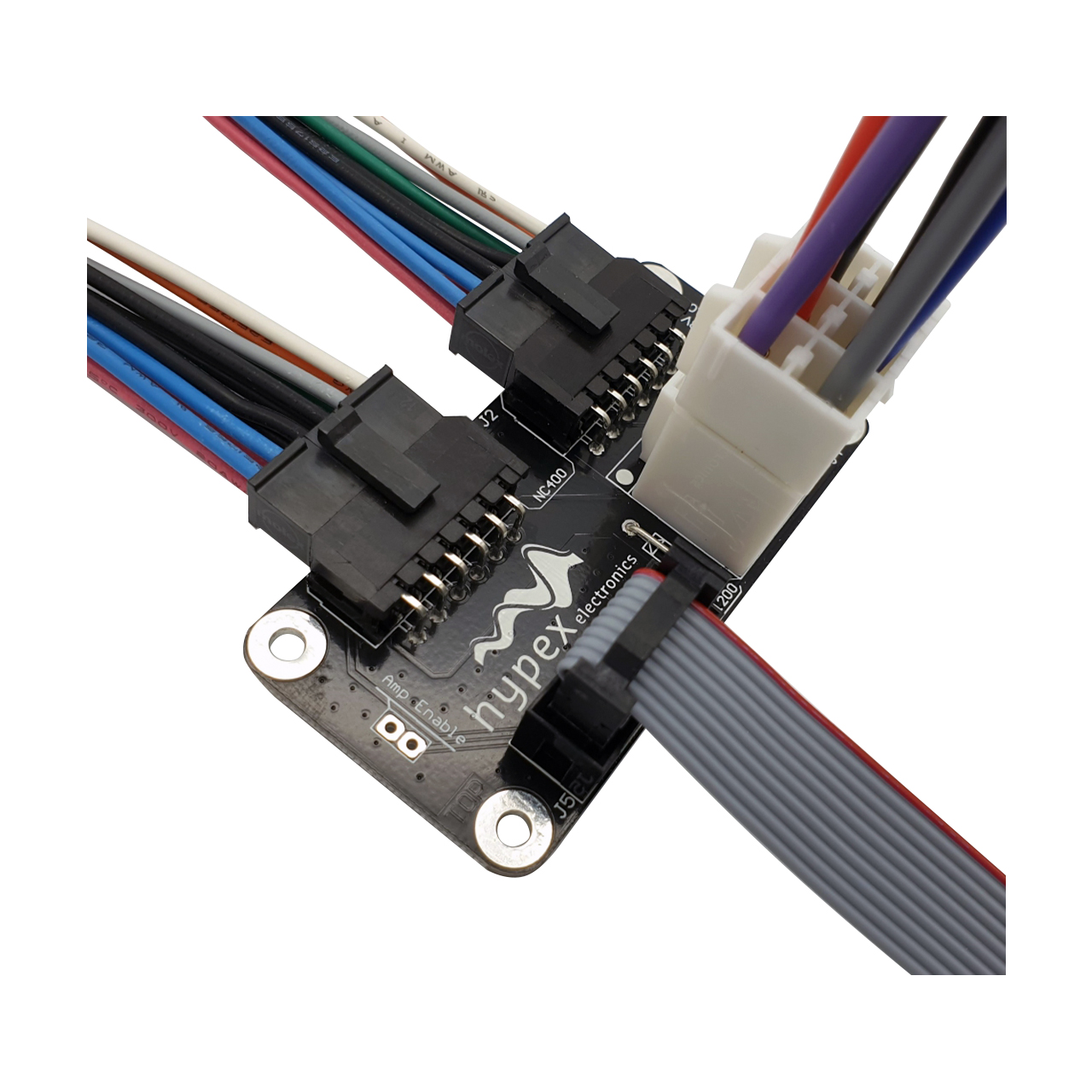

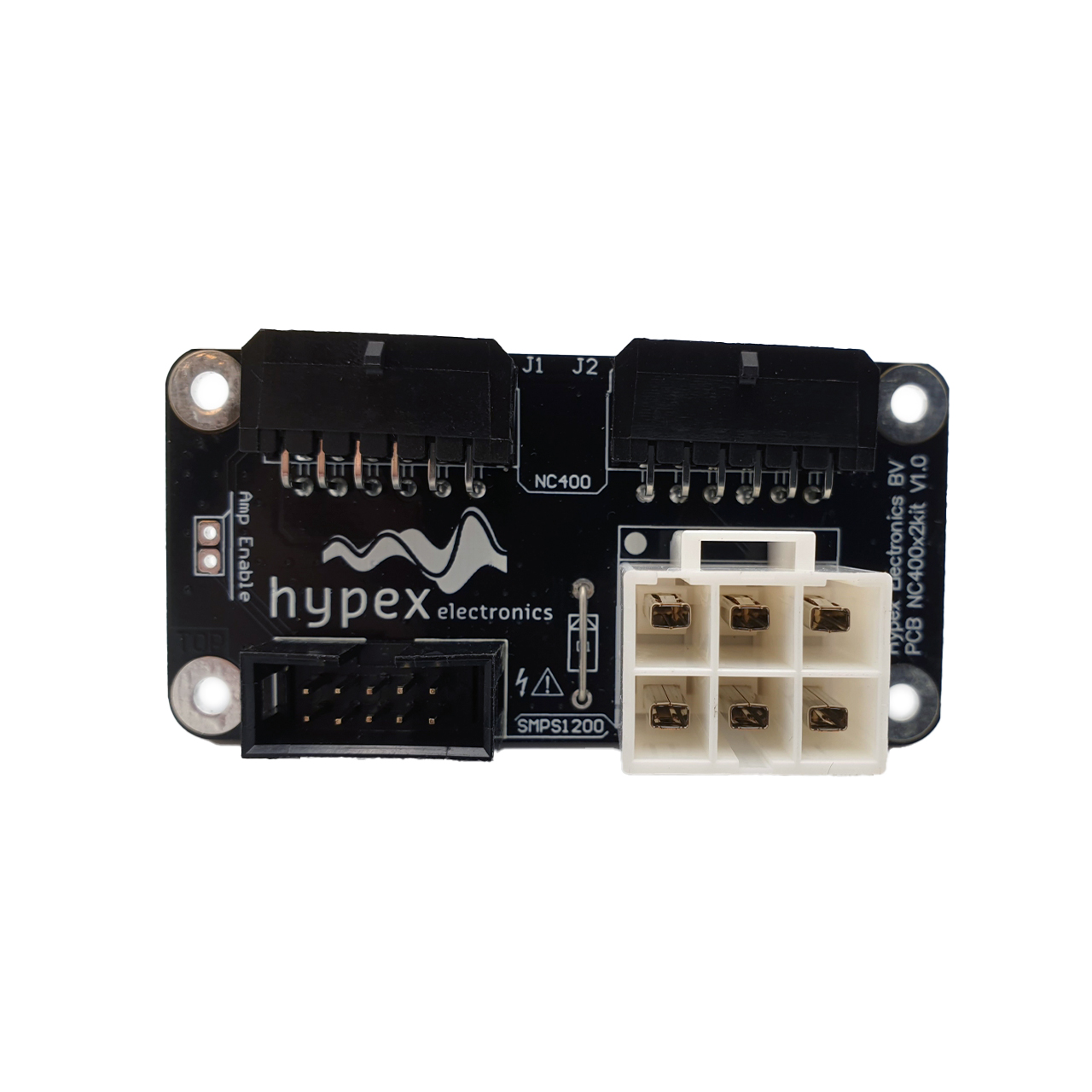

SMPS1200A400 onto 2x NC400 Connection kit

*** This product is discontinued *** The NC400 packs a feature set never seen before in a modular amplifier product. The NC400 module's audio performance sets new standards,regardlessof operating class or circuit technology. Distortion (THDand IMD) over the full audio and power range is negligible, typically below 0.0007%. Distortion at listening levels (1W) is unmeasurable. This amp adds neither dirt nor fairy dust. APPLICATIONSHigh-end active loudspeakers High-end stand-alone power amplifiers FEATURES: Transparent, fully discrete input circuitry HxR style regulators on board Differential inputs with high common-mode impedance Overcurrent protection Supply overvoltage/undervoltage protection on all rails CONTENTS OF PACKAGING: NC400 amplifier module Mount set NC400 Cable set NC400 (incl. Ncore signal cable) Manual RECOMMENDED ADDITIONAL PARTS: Power Supply SMPS600N400 (1x NC400) Power Supply SMPS1200A400 (2x NC400)

The SMPS1200 is a high efficiency Safety Class 2 switch mode power supply designed for use with UcD™, NCORE® and NCOREx® amplifier modules. The unit is intended for audio systems that require stable power delivery across a wide load range in a compact and lightweight format. The power supply includes an overcurrent protection mechanism that limits output current during temporary overload conditions. It also provides symmetrical auxiliary outputs and a control interface for operation with UcD™, NCORE® and NCOREx® amplifier modules. The SMPS1200 is designed to achieve low levels of radiated and conducted electromagnetic interference. The topology and layout are optimised to meet EMI requirements commonly associated with professional and high end audio applications. The power supply supports a selectable input voltage range, allowing operation with different mains supply specifications. This supports use in international applications with varying power grid standards. SMPS1200 is a 2-quadrant full bridge rectifier, making it possible to supply single ended class d amplifiers. The SMPS1200 complies with applicable safety and performance standards and is certified for use in professional audio equipmen HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • 2-quadrant full bridge rectifier • Selectable input voltage range • External controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.
